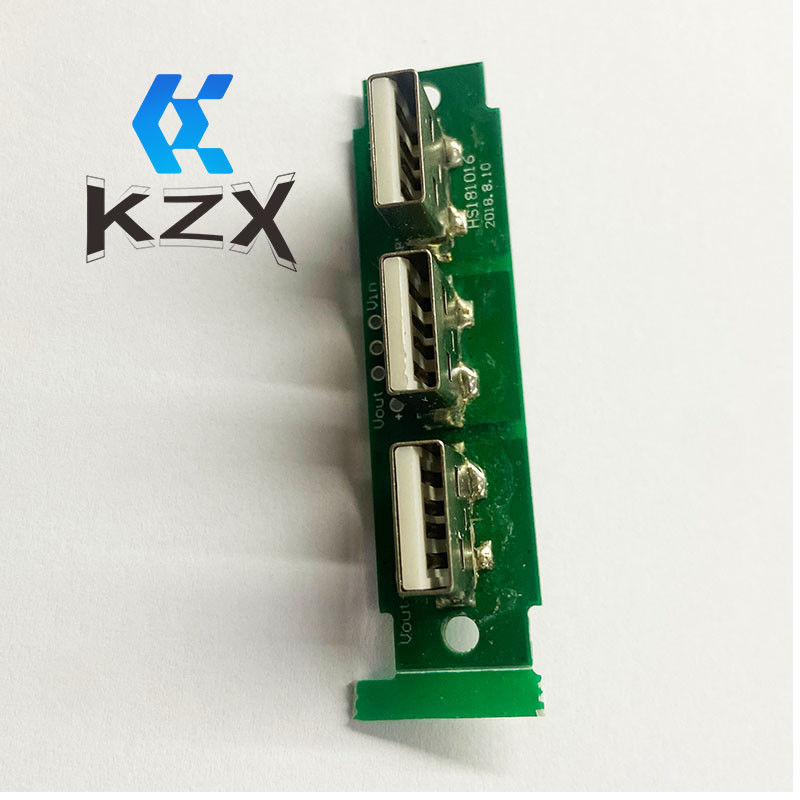

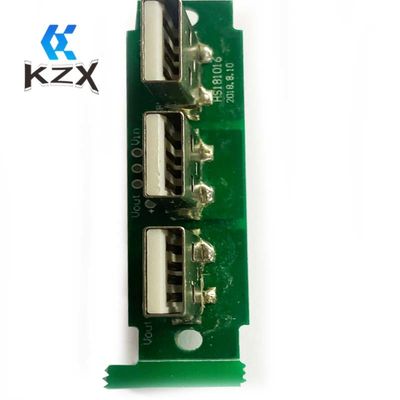

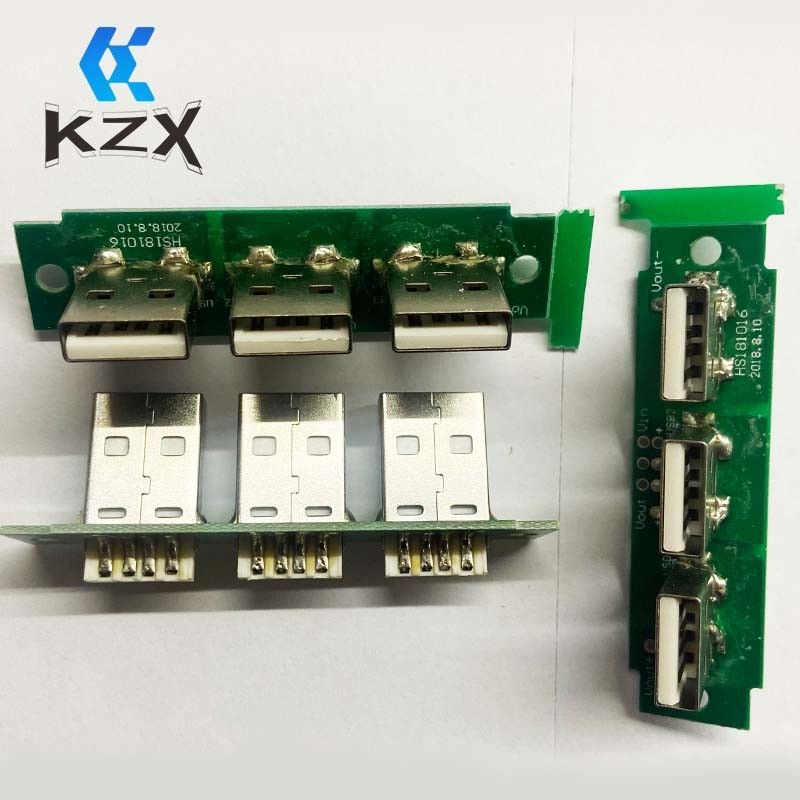

High Performance 2 Layers PCB FR4 Multi Layer PCB 1.6mm Thickness

Product Description:

This 2 Layers PCB is a type of custom printed circuit board, which is ideal for double sided PCB assembly, as it is made out of FR4 material and is a multilayer PCB. It has a board thickness of 1.6mm and a copper thickness of 1oz, as well as blind/buried vias and impedance control. This product is perfect for anyone looking for a reliable and high-quality PCB for their electronic project.

Features:

• Product Name: 2 Layers PCB
• Board Thickness: 1.6mm
• Copper Thickness: 1oz
• Blind/Buried Vias: Yes
• Material: FR4
• Impedance Control: Yes
• Custom PCB Boards
• Double Sided PCB Board
• FR4 Multilayer PCBs

Technical Parameters:

Applications:

KZX is the brand name of reliable and high-quality FR4 multilayer PCBs and custom PCB boards, which are offered by KZX with model number KZX2023120512. It is certified by 25020001470ROS and the minimum order quantity is 10 pieces. The price is open to negotiation. Customers can choose their preferred packing. The delivery time is determined by order status and payment terms include T/T, L/C, PayPal, and Western Union, etc. KZX has strong supply ability with 3 PCB SMT lines. Its min trace/space is 4/4mil, solder mask color is green, board thickness is 1.6mm, and copper thickness is 1oz. The blind/buried vias can also be provided.

KZX's FR4 multilayer PCB and custom PCB boards are widely used in various industries, such as industrial control, consumer electronics, musical instruments, medical equipment, automotive electronics, aerospace, and military and other high-end fields. Its double-sided PCB assembly provides excellent electrical performance, fast heat dissipation, and the ability to withstand high temperature. KZX's PCBs and PCB boards are ideal for high-efficiency, stable, and reliable signal transmission.

Customization:

We provide customized 2 Layers PCB service with the following attributes:

• Brand Name: KZX
• Model Number: KZX2023120512
• Place of Origin: Guangdong, China
• Certification: 25020001470ROS
• Minimum Order Quantity: 10 piece
• Price: Price negotiation
• Packaging Details: Customer specified packing
• Delivery Time: Subject to order status
• Payment Terms: T/T, L/C,Paypal,western union etc
• Supply Ability: 3 PCB SMT lines
• Copper Thickness: 1oz
• Impedance Control: Yes
• Board Thickness: 1.6mm
• Min Trace/Space: 4/4mil
• Layer Number: 2

Our 2 Layers PCB service is suitable for Double Sided PCB Assembly, FR4 Multilayer PCB, Communication PCB and Automotive PCB.

Support and Services:

We offer technical support and service for 2 Layers PCB. Our team of experts is available to answer all your questions related to the product.

Our technical support team is trained to provide prompt, professional assistance when it comes to any technical issues that may arise. We are available to answer any questions related to the product and can provide guidance on how to best utilize the product.

We offer a variety of services related to 2 Layers PCB. Our services include installation, troubleshooting, repairs, upgrades, and maintenance. We provide these services at competitive prices and with quick turnaround times.

We offer a one-year warranty on 2 Layers PCB. If any defects or malfunctions arise during that time, we will repair or replace the product free of charge.

Packing and Shipping:

Packaging and Shipping for 2 Layers PCB:

The 2 layers PCB will be packaged into an ESD (Electrostatic Discharge) bag, which will provide protection from external damage and static electricity. The bag will be sealed with a zip tie to ensure the product is secure. The product will then be placed into a cardboard box that is lined with foam to provide additional protection. The box will be sealed with packaging tape. Finally, the box will be shipped to the customer via a reputable shipping service provider.
