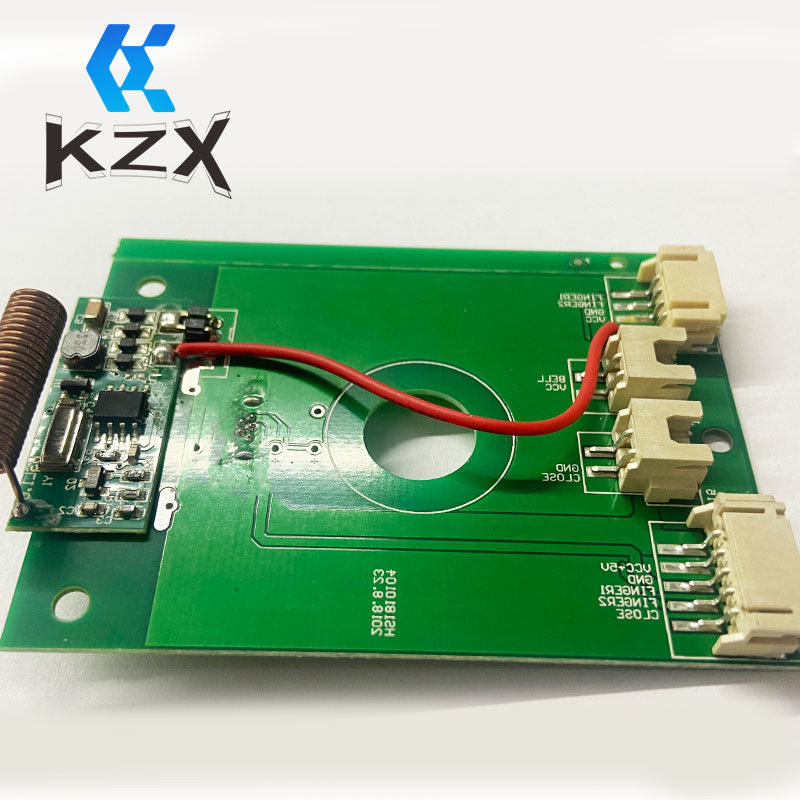

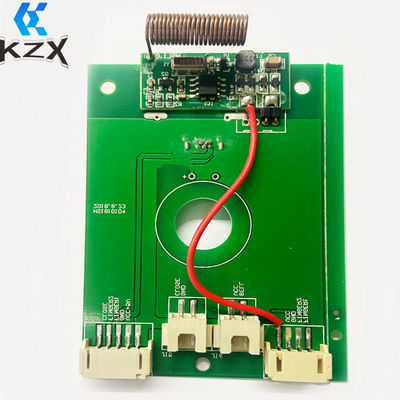

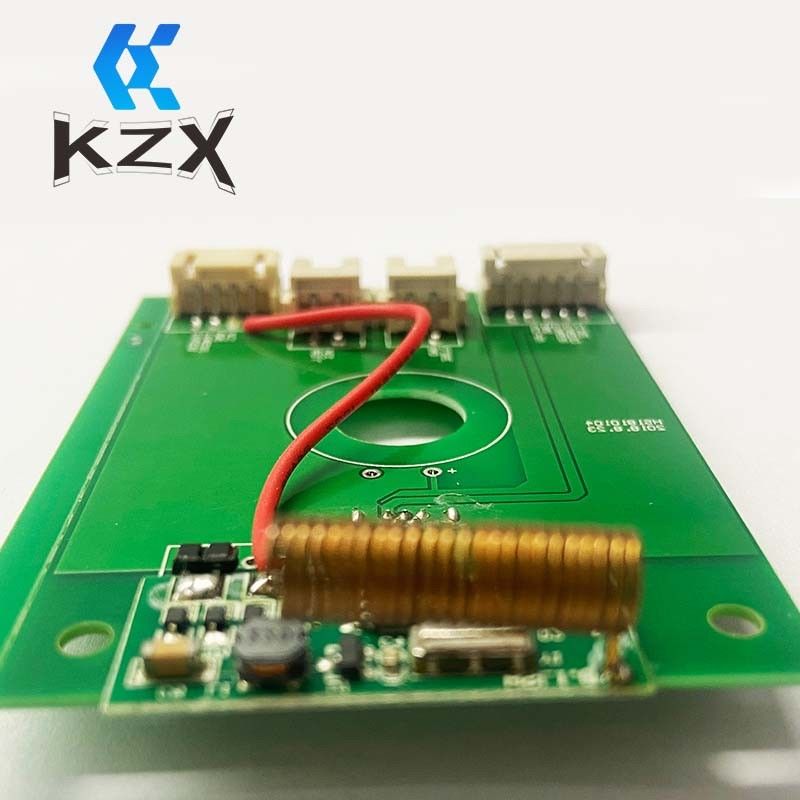

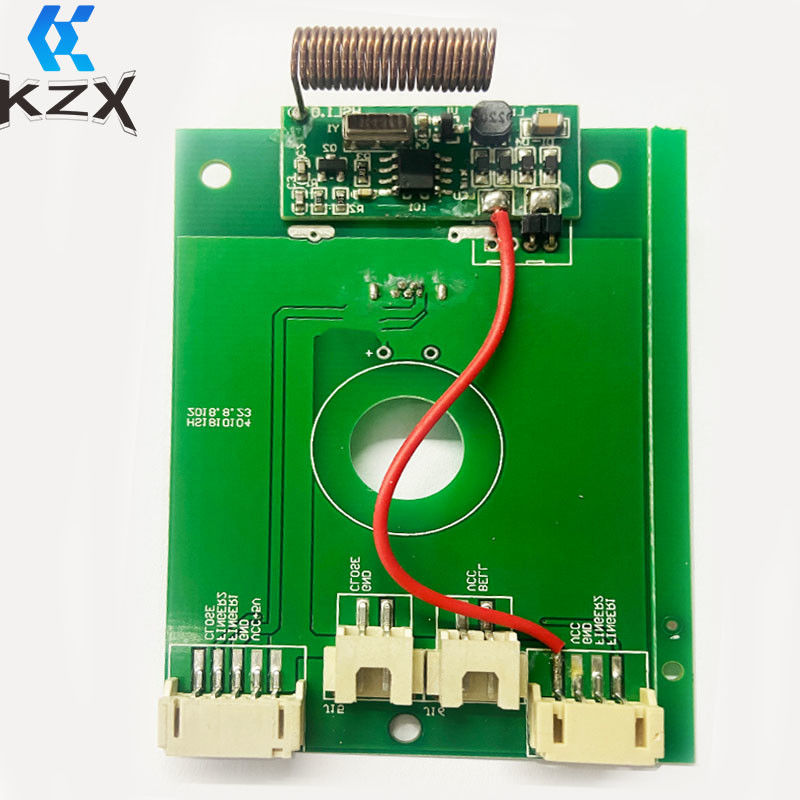

Black Silk Screen 2 Layers PCB SMT PCB Assembly Thickness 0.2-6.0mm AOI Tested

Product Description:

SMT PCB Assembly is a specialized service of the printed circuit board (PCB) assembly. It is an advanced surface mount technology assembly process used in the production of high quality and reliable printed circuit boards. The SMT process is used to assemble components such as passive components, connectors, ICs, BGA, and QFNs onto printed circuit boards with different material types such as FR-4, FR-1, CEM-1, CEM-3, aluminum, and rogers. The solder mask colors available for these PCBs are green, blue, white, black, yellow, and red. The board thickness for these assemblies range from 0.2mm to 6.0mm. With surface mount PCB assembly, customers are ensured of high quality and reliable printed circuit boards.

Features:

• Product Name: SMT PCB Assembly
• Product Type: SMT PCB Assembly
• Solder Mask Color: Green, Blue, White, Black, Yellow, Red
• Material Type: FR-4, FR-1, CEM-1, CEM-3, Aluminum, Rogers
• Components: Passive Components, Connectors, ICs, BGA, QFN
• Surface Finish: HASL, ENIG, OSP, Immersion Silver, Immersion Tin
• Specialties: Surface Mount Technology Assembly, Surface Mount PCB Assembly, Surface Mount Technology Assembly, SMT Assembly

Technical Parameters:

Applications:

KZX Surface Mount PCB Assembly (Model No. KZX2023120510) is one of the most reliable and efficient products of its kind available on the market today. It is produced from high-quality materials such as FR-4, FR-1, CEM-1, CEM-3, and Aluminum, and Rogers. The product is certified with the 25020001470ROS standard, and is capable of meeting various types of customer requirements. The board thickness ranges from 0.2 to 6.0mm, and the solder mask colors are available in green, blue, white, black, yellow, and red.

KZX Surface Mount PCB Assembly is suitable for a wide range of applications, from consumer electronics to automotive and medical devices. It is a reliable and cost-effective solution for surface mounting assembly and is designed to minimize the risk of component loss or misalignment during assembly. The product is tested with AOI, X-Ray, Flying Probe, ICT, and FCT. It is provided with a minimum order quantity of 10 pieces and the price is negotiable. The delivery time is subject to the order status and the packaging is according to customer specifications.

KZX Surface Mount PCB Assembly is designed to provide a reliable and cost-effective solution for surface mounting assembly. It is manufactured with high-quality materials and is tested with different tests to ensure the highest level of reliability. The product is certified with the 25020001470ROS standard and is available with a minimum order quantity of 10 pieces. Its price is negotiable and delivery time is subject to order status. The product is suitable for a wide range of applications and provides a reliable and cost-effective solution for surface mounting assembly.

Customization:

Support and Services:

SMT PCB Assembly technical support and services include the following:

• Assistance with product selection and product customization
• Technical advice on design and component selection
• Documentation and software support
• Testing and troubleshooting of assemblies and products
• On-site installation and maintenance

Packing and Shipping:

SMT PCB Assembly packaging and shipping includes the following steps:

• Inspect and test the assembled PCBs to ensure fit and function.
• Clean and package the assembled PCBs in anti-static foam.
• Package the assembled PCBs in heavy-duty corrugated boxes.
• Ship the packaged PCBs with a reliable carrier, such as FedEx or UPS.
• Provide tracking information to ensure delivery.
