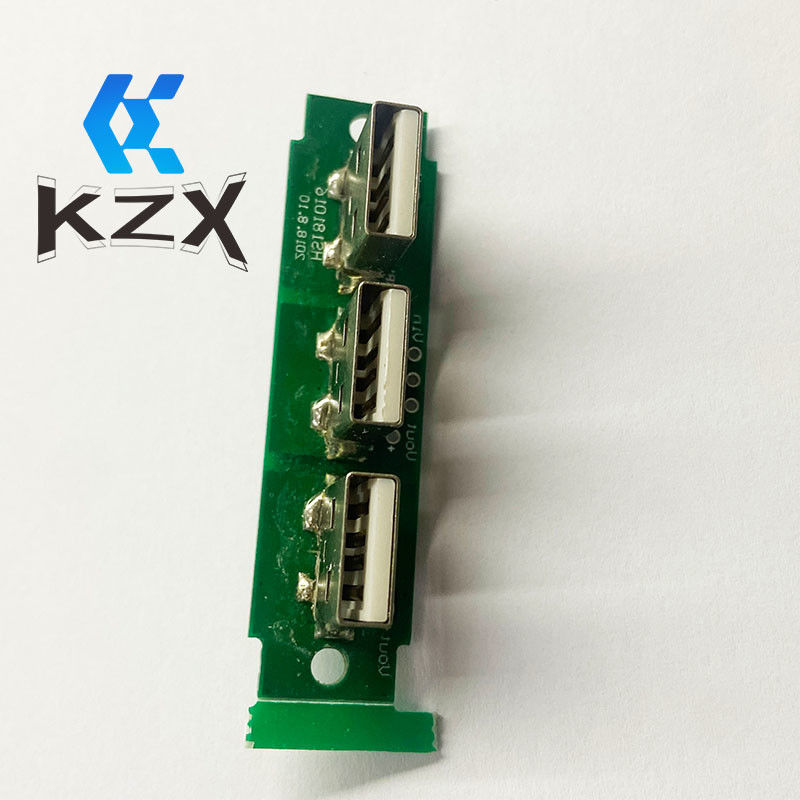

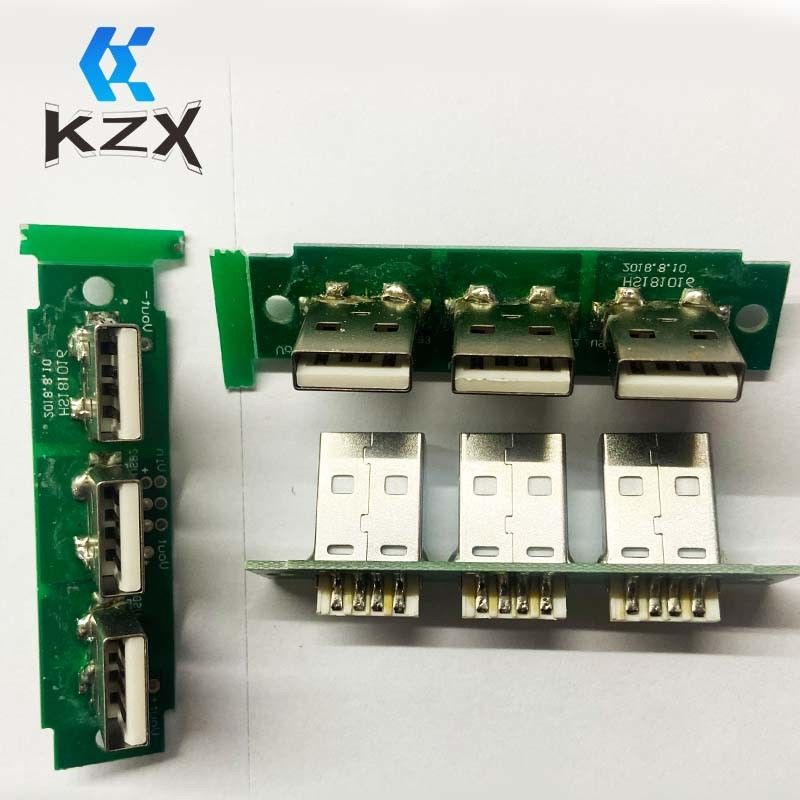

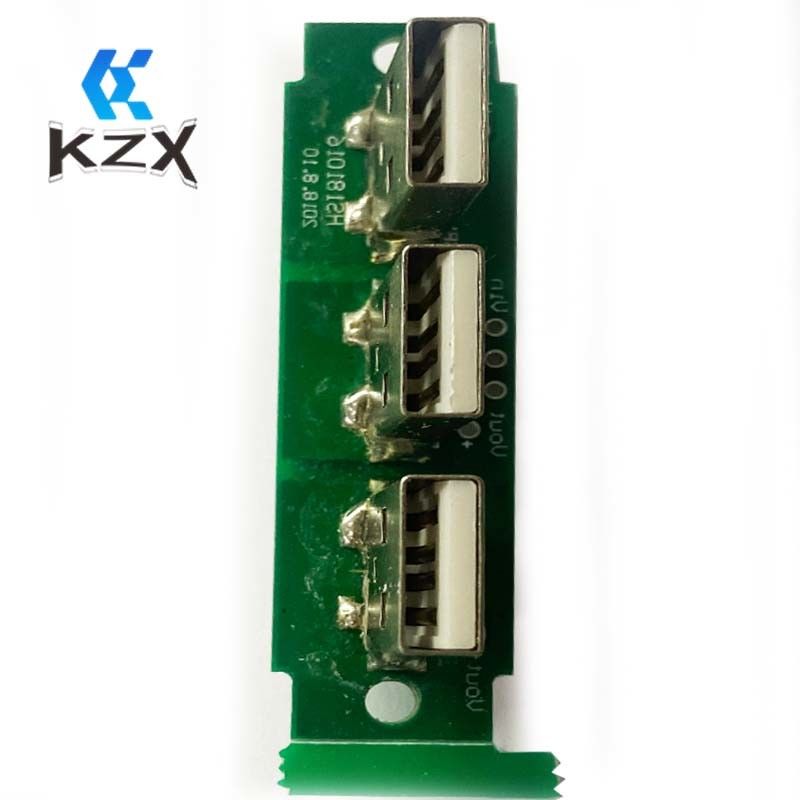

Rogers Surface Mount 2 Layers PCB With OSP Surface Finish 0.2-6.0mm

Product Description:

Surface Mount Technology (SMT) PCB Assembly is a specialized service for printed circuit board (PCB) production and assembly. It is a method of producing electronic components by placing them directly onto the surface of a printed circuit board (PCB). This technique requires high precision and accuracy to ensure quality and reliability. The process is highly efficient and cost-effective, making it an ideal choice for manufacturers looking for custom solutions.

Our SMT PCB Assembly services offer a wide range of solder mask colors, from green, blue, white, black, yellow, and red. Our advanced testing services, such as Automated Optical Inspection (AOI), X-Ray Inspection, Flying Probe Test, In-Circuit Test (ICT) and Functional Circuit Test (FCT), ensure the highest quality of production. We also offer a variety of materials, such as FR-4, FR-1, CEM-1, CEM-3, aluminum, and Rogers. The surface finishes available include HASL, ENIG, OSP, immersion silver, and immersion tin.

Our state-of-the-art SMT PCB Assembly services provide customers with a reliable and cost-effective solution for their electronic components. With our experienced engineers and technicians, we guarantee a quality product that meets all your needs. Contact us today to learn more about our Surface Mount Technology Assembly services.

Features:

• Product Name: SMT PCB Assembly
• Silk Screen Color: White, Black, Yellow
• Board Thickness: 0.2-6.0mm
• Solder Mask Color: Green, Blue, White, Black, Yellow, Red
• Product Type: Surface Mount PCB Assembly, Surface Mounted Assembly, Printed Circuit Board Mounting Assembly
• Material Type: FR-4, FR-1, CEM-1, CEM-3, Aluminum, Rogers

Technical Parameters:

Applications:

KZX is a leading provider of Surface Mount PCB Assembly (SMT PCB Assembly) with model number KZX2023120510. It is certificated with 25020001470ROS. The minimum order quantity is 10 pieces, and the price can be negotiated. KZX offers customer specified packing and delivery time is subject to order status. Payment terms include T/T, L/C,Paypal,western union etc. It is capable of producing 3 PCB SMT lines. Test methods include AOI, X-Ray, Flying Probe, ICT, FCT. The board thickness is from 0.2-6.0mm and components include passive components, connectors, ICs, BGA, QFN. The silk screen color is white, black and yellow.

Surface Mount PCB Assembly is one of the most advanced technologies in the PCB industry. Surface mount components are placed directly onto the surface of the printed circuit board (PCB) and soldered in place to create a strong mechanical and electrical connection. SMT PCB Assembly is an efficient and cost-effective way to produce high-quality, reliable and durable electronics products.

The Surface Mount Technology Assembly (SMT Assembly) is suitable for a wide range of applications including industrial, medical, automotive, military, telecommunications, consumer electronics, aerospace, and many more. It is the most advanced PCB assembly technology, and is ideal for high-volume and high-density electronics production. It is capable of producing highly complex components and boards with high accuracy and reliability.

KZX provides complete Surface Mounted Printed Circuit Board Assembly (SMT PCB Assembly) solutions. Its advanced SMT assembly equipment and highly experienced engineers ensure high-quality, reliable and durable electronics products. KZX provides one-stop SMT assembly services, including surface mount stencils, component placement, soldering, testing, and more.

Customization:

Support and Services:

We provide world-class technical support and service for SMT PCB Assembly. We offer comprehensive technical support from product selection to design, manufacturing, assembly, and testing. Our technical team is experienced in product development, manufacturing process and system design. Our team of experts is available to help you with any technical issue or question you may have.

We offer a wide range of services to help you get your SMT PCB Assembly project off the ground. From component selection and layout design to prototyping, manufacturing, and testing, we work with you to ensure that your project is completed on time and to your specifications.

Our service offerings include:

• Product selection and design guidance
• Prototyping and manufacturing process optimization
• Assembly and testing support
• Remote and onsite technical support

We are committed to providing the best technical support and service for your SMT PCB Assembly project. Contact us today to find out more about how we can help you with your project.

Packing and Shipping:

SMT PCB Assembly Packaging and Shipping:

1. All products are packed in anti-static bags to protect them from electrostatic discharge during transit.

2. The PCBs are then placed inside a box or a static-shielding bag for additional protection.

3. The boxes are then sealed with foam sealant to ensure that the PCBs stay secure during transit.

4. Finally, the package is shipped with either a registered courier or a reliable mail service.
