High End Electronics PCB Cloning Service Printed PCB Assembly

High End Electronics PCB Cloning Service Printed PCB Assembly

Products - PCB Cloning Service
  • High Light

    High End PCB Cloning Service

    ,

    Electronics PCB Cloning Service

    ,

    0.01'' printed pcb assembly

  • Base Material
    FR-4, Glass Epoxy, FR4 High Tg, Rohs Compliant
  • Copper Thickness
    1/2OZ 1OZ 2OZ 3OZ
  • Min. Hole Size
    0.01'',0.25mm.or 10 Mil
  • Min. Line Width
    0.006'' Or 0.15mm
  • Min. Line Spacing
    4mil
  • Surface Finishing
    HASL,OSP, ENIG, Lead Free Etc.
  • Order Quantity
    1-500,000
  • Number Of Layer
    1,2,4,6,up To 22 Layers
  • PCB Type
    Hard, Flexible, Rigid-flexible
  • Max PCB Dimensions
    20inch*20inch Or 500mm*500mm
  • Thickness Tolerance
    ± 10%
  • Copper Thickness Tolerance
    ± 0.25oz
  • Solder Mask
    Green, Red, White, Yellow, Blue, Black, Etc
  • Silk Screen
    White, Yellow, Black, Or Negative, Etc
  • SMT Jointing Min. Space
    0201mm
  • QFP Space
    Pitch 0.3mm
  • Port
    Yantian, Shekou, Hongkong
  • Place of Origin
    Guangdong, China
  • Brand Name
    KZX
  • Model Number
    CR_Mica_MCU
  • Price
    $5.00/pieces 1-20 pieces
  • Packaging Details
    The goods are packed in anti-plastic bag or individual box, will be packed into corrugated packaging, made of five-layered corrugated carton.
  • Supply Ability
    1000 Piece/Pieces per Day

High End Electronics PCB Cloning Service Printed PCB Assembly

  • High End Electronics PCB Cloning Service Printed PCB Assembly
  • High End Electronics PCB Cloning Service Printed PCB Assembly
  • High End Electronics PCB Cloning Service Printed PCB Assembly
  • High End Electronics PCB Cloning Service Printed PCB Assembly
  • High End Electronics PCB Cloning Service Printed PCB Assembly
  • High End Electronics PCB Cloning Service Printed PCB Assembly
  • High End Electronics PCB Cloning Service Printed PCB Assembly
Get Price Contact Now



High-End Cr_Mica_Mcu Control Board Customized Electronics PCB Factory Supplier Printed Pcb Assembly

Products Description
High End Electronics PCB Cloning Service Printed PCB Assembly 0
High End Electronics PCB Cloning Service Printed PCB Assembly 1
High End Electronics PCB Cloning Service Printed PCB Assembly 2
High End Electronics PCB Cloning Service Printed PCB Assembly 3
High End Electronics PCB Cloning Service Printed PCB Assembly 4
High End Electronics PCB Cloning Service Printed PCB Assembly 5
High End Electronics PCB Cloning Service Printed PCB Assembly 6
PCB Technical Specitication

Board Material FR4
Order quantity 1-600000
Number of layer4  4 layers
Shape Any shape: Rectangular,round,slots,cutouts,complex,irregular, etc
Max PCB dimensions 20 inch*20 inch or 500mm*500mm
Board thickness 1.6mm, customized from 0.4mm up to 4mm
Thickness tolerance 士10%
Copper thickness 10Z, 2OZ
tolerance +0.25oz
Solder mask Green, black, etc
Silk screen White, yellow, black, or negative, etc
Silk screen min line width 0.006 or 0.15mm
Surface fnish HASL, Nickle, lmm Gold, Imm Tin, Imm Silver, OSP etc
Min drill hole diameter 0.01"0.25mm.or 10 mil
PCB cutting Shear,V-score,tab-routed

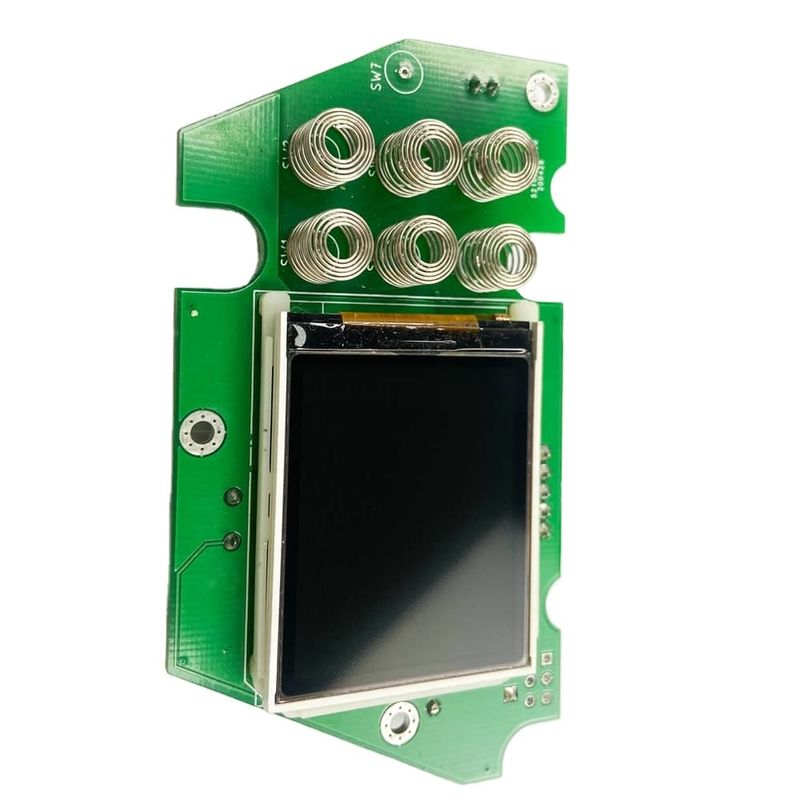

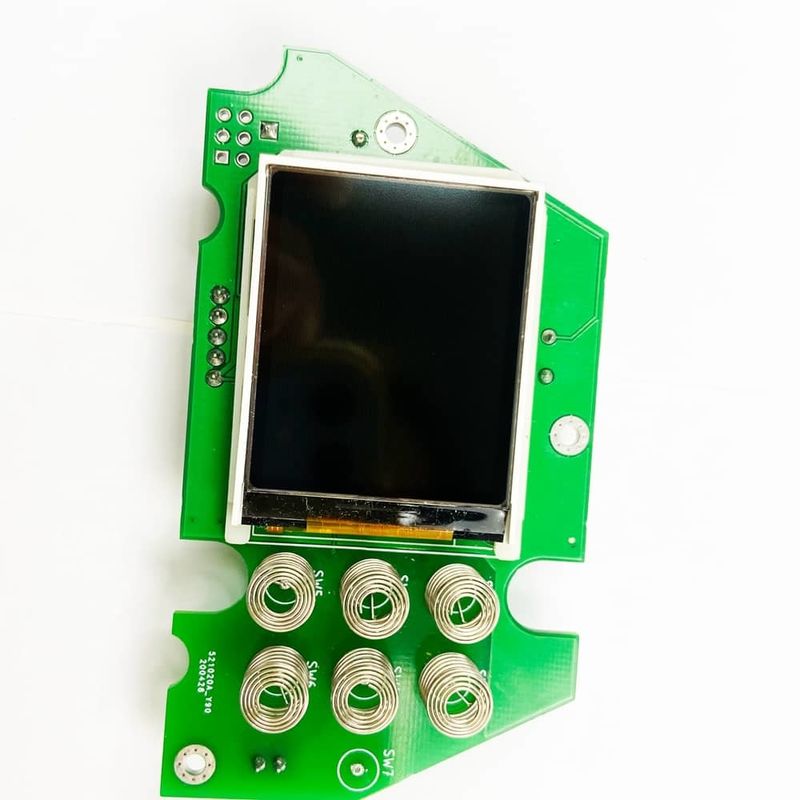

Application LCD screen MCU control board
Industry Climate Control Solutions







PCB Assembly Capabilities

SMT Jointing Min. Space 0201mm
QFP Space Pitch 0.3mm
Min. Package 201
Min. Size 2*2 inch(50*50mm)
Max. Size 14*22 inch(350*550mm)
Placement Precision +0.01mm
Placement Precision QFP.SOP.PLCC,BGA
Placement Capability 0805.0603.0402.0201
Quality Control Visual Inspection, FAI, AOI, X-RAY





PCB Lead time workday(s)



  Single, Double-sided 4 layer 6 layer Over 8 layer HDI
Sample Lead time (Normal) 4~5 days 6~7 days 7~8 days 10~12 days 10~12 days
Sample Lead time (Faster 2~3 days 3~5 days 6 days 6~7 days 12 days
Mass production lead time 7~10 days 10~14 days 13-14 days 16 days 20 days



PCB Assembly Lead time
Sample Lead time PCB Fab+Components Sourcing+PCBA= 7~15 days according to level difficulties
Mass production lead time PCB Fab+Components Sourcing+PCBA=14~28 daysaccording to QTY and level difficulties.
