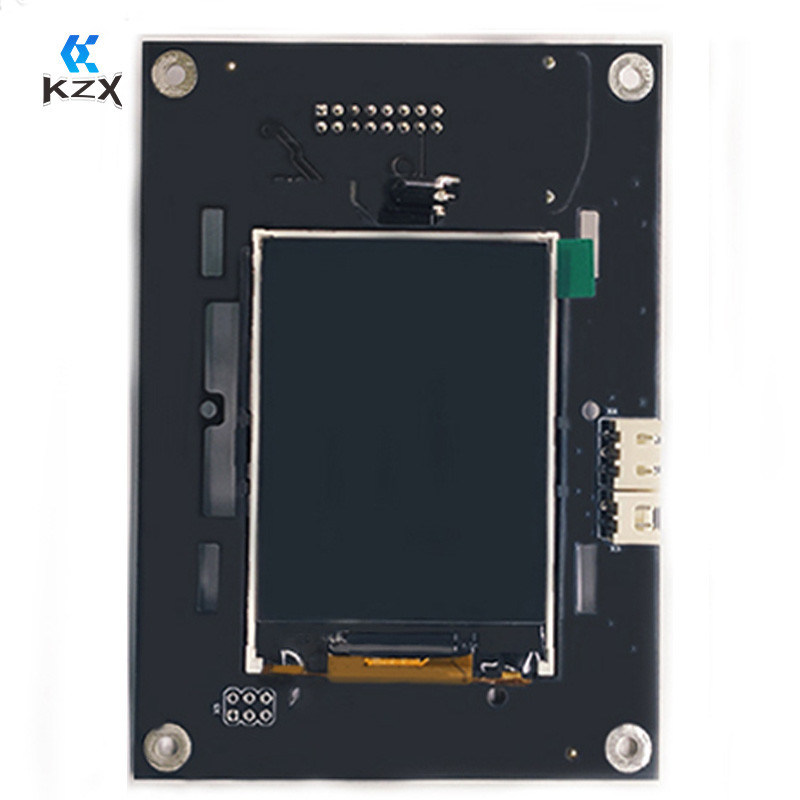

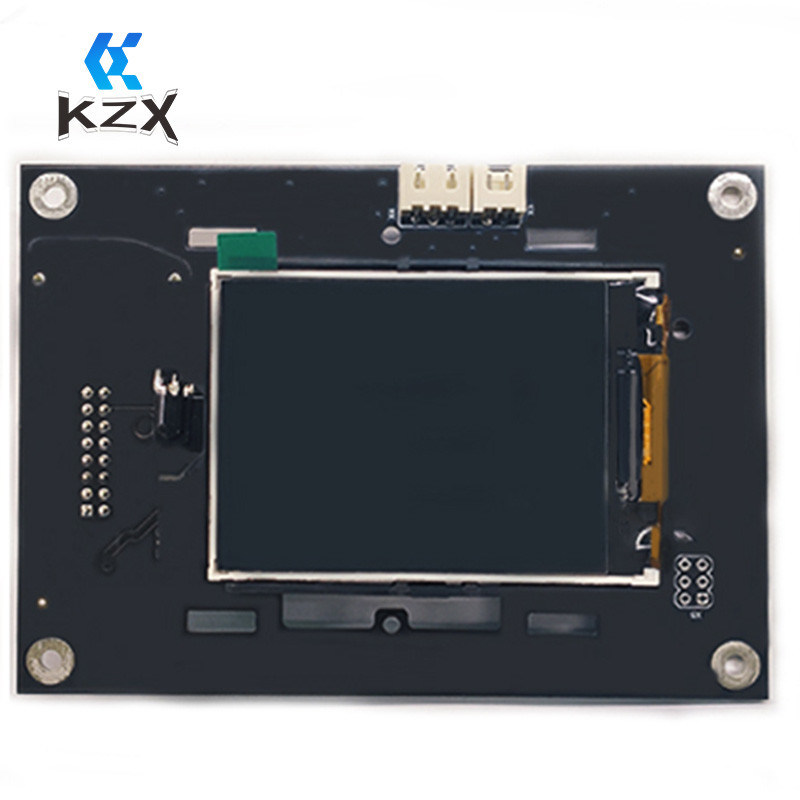

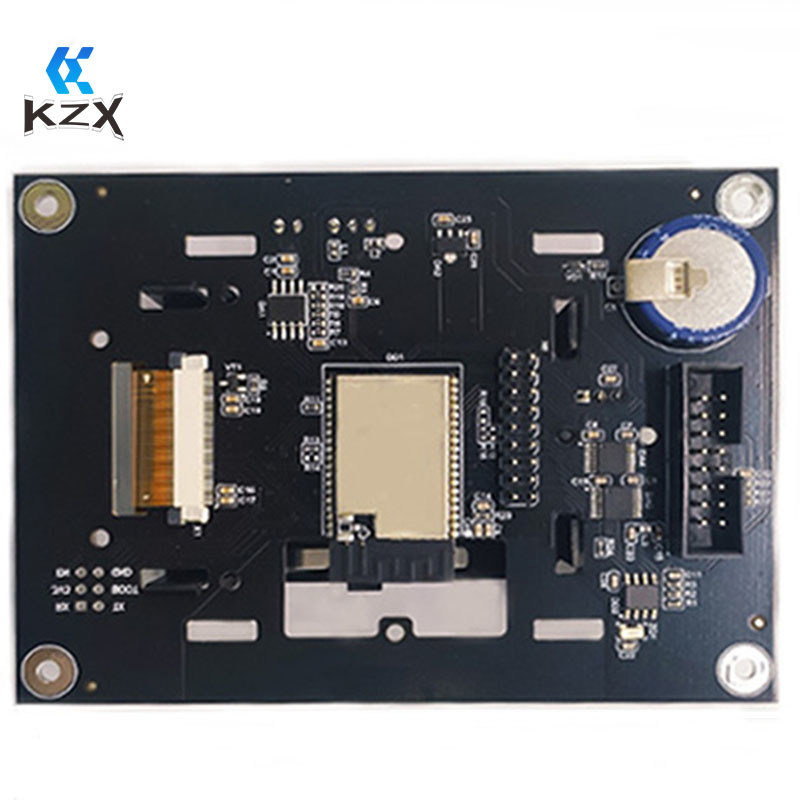

Quick Turnaround Multilayer PCB Assembly Min Trace Space 4 Mil

Product Description:

Multilayer PCB Assembly is a custom product to meet specialized needs. It is designed for communication and other applications with high reliability and precision. It is made of FR4, high TG FR4, halogen free, aluminum, rogers, and teflon materials. The minimum trace/space is 4 mil, and the minimum hole size is 0.01'', 0.25mm or 10 mil. The copper thicknesses range from 1/2OZ to 3OZ. The lead time is 7-15 days. With the help of experienced engineers and advanced technology, we can offer reliable and cost-effective custom PCB assembly services for communication, medical, industrial, consumer electronics and other applications. Our Multilayer PCB Assembly provides high performance, excellent quality, and efficient production.

Features:

• Product Name: Multilayer PCB Assembly
• Silkscreen Color: White,Black,Yellow
• Board Thickness: 0.4-3.0mm
• Material: FR4, High TG FR4, Halogen Free, Aluminum, Rogers, Teflon
• Layer Count: 1-20
• 4 Layer PCB: Yes
• 6 Layer PCB: Yes
• FR4 Multilayer PCB: Yes

Technical Parameters:

Applications:

KZX is a professional manufacturer of custom PCB assembly, circuit board assembly, communication PCB assembly and multilayer PCB assembly. Its Model Number is KZX2023120514 with brand name KZX. The product has obtained the certification of 25020001470ROS. The minimum order quantity is 10 pieces and the price is negotiable. The packaging is customer specified packing and the delivery time is subject to order status. The payment terms include T/T, L/C, Paypal, western union, etc. There are 3 PCB SMT lines to ensure the supply ability and the lead time is 7-15 days. The material includes FR4, High TG FR4, Halogen Free, Aluminum, Rogers, Teflon. The copper thickness is 1/2OZ 1OZ 2OZ 3OZ and the board thickness is 0.4-3.0mm with maximum board size of 500mm*500mm. KZX is devoted to providing customers with high quality products and excellent services.

Customization:

Packing and Shipping:

Packaging and Shipping for Multilayer PCB Assembly:

To ensure the quality of the product, the Multilayer PCB assembly is packaged with an ESD bag. The ESD bag is then placed in a box with sufficient foam cushioning to prevent any damage during transit. The box is then secured with foam and sealed with tape. Upon delivery, the customer is required to check for any damage before signing for the package.
