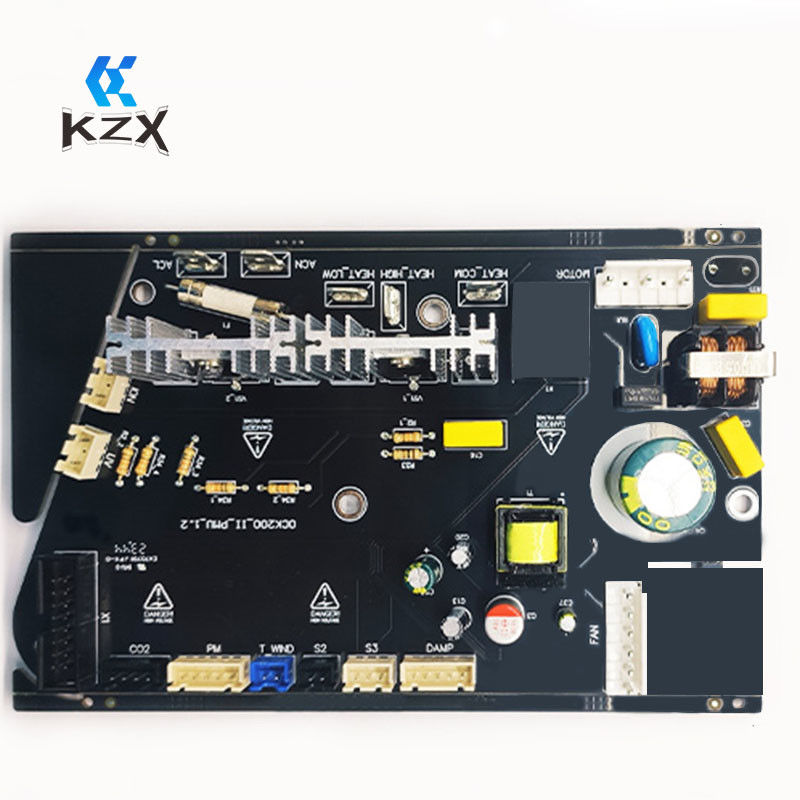

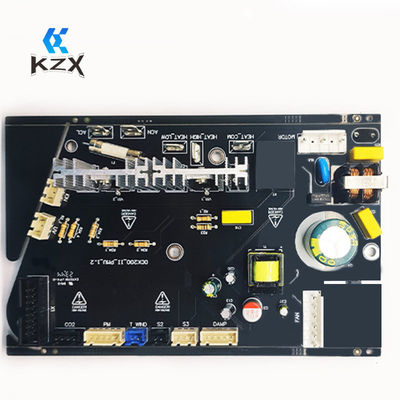

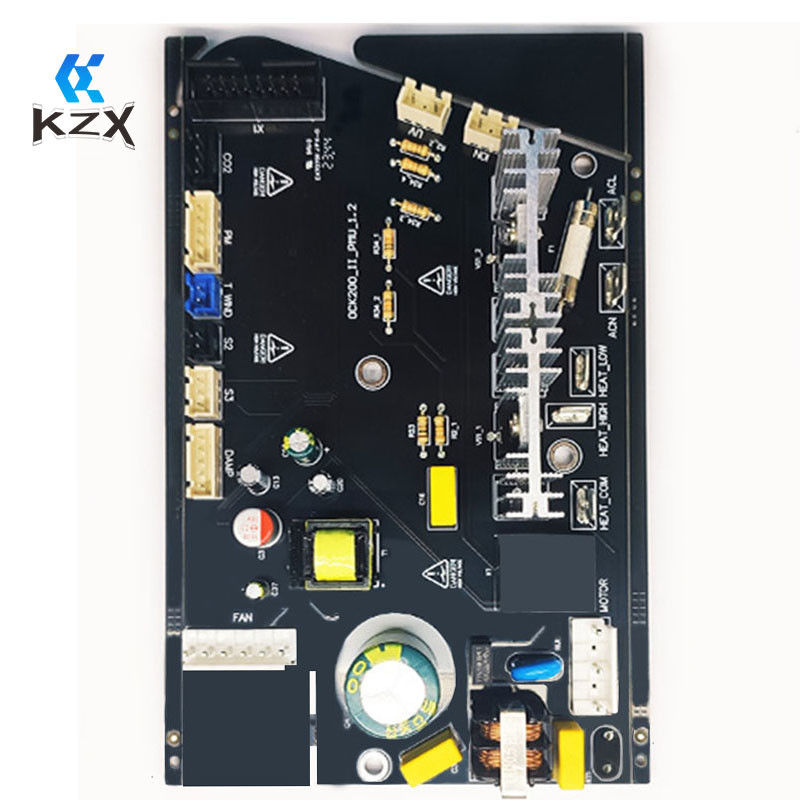

0.5oz 1oz 2oz 3oz Flex Multilayer Circuit Board 1-20 Layer Count

Product Description:

Multilayer PCB Assembly is an ideal solution for high-performance communication PCBs. It is designed with multiple layers with a wide range of materials, including FR4, high TG FR4, halogen free, aluminum, rogers, and teflon. It offers copper thickness from 1/2oz to 3oz and minimum hole size from 0.01'', 0.25mm, or 10 mil. The layer count ranges from 1 to 20. With fast lead time of 7-15 days, it is suitable for various applications. It is also a highly reliable and cost-effective solution for FR4 Multilayer PCB and FR4 Multilayer PCB Assembly.

Features:

• Product Name: Multilayer PCB Assembly
• Layer Count: 1-20
• Board Thickness: 0.4-3.0mm
• Board Size: Max 500mm*500mm
• Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ
• Custom PCB Assembly, OEM PCB Assembly
• FR4 Multilayer PCB

Technical Parameters:

Applications:

KZX Multilayer PCB Assembly offers a perfect combination of high performance and reliability for a wide range of applications. With reliable FR4 material, advanced techniques and strict quality control, KZX ensures the highest quality of Multilayer PCBs. KZX Multilayer PCB Assembly is certified according to 25020001470ROS, ensuring the highest quality standards. With minimal order quantity of 10 pieces, customers can customize their desired product with KZX. It offers different packaging options as per customer requirement. KZX Multilayer PCB Assembly has a lead time of 7-15 days, with flexible payment terms such as T/T, L/C, Paypal, Western Union etc. It has 3 PCB SMT lines to fulfill the orders in short time.

KZX Multilayer PCB Assembly is designed to meet the high performance requirements of the most demanding applications. It is available in different board thickness from 0.4-3.0mm and different copper thickness from 1/2OZ to 3OZ. It also offers different silkscreen colors such as White, Black, Yellow etc. for better visibility. KZX Multilayer PCB Assembly is suitable for Flex PCB Assembly and Circuit Board Assembly as well as other complex PCBs. It is the perfect choice for high-performance applications.

Customization:

We provide customized 4 Layer PCB Assembly service with the brand name KZX, model KZX2023120514, from Guangdong, China with certification 25020001470ROS. Our minimum order quantity is 10 pieces and we provide competitive price for all our services. We use customer specified packing for our products and the delivery time is subject to order status.

We accept various payment methods such as T/T, L/C, Paypal, Western Union etc. We have 3 PCB SMT lines to ensure our supply ability. Our board thickness range from 0.4-3.0mm, layer counts from 1-20, silkscreen color available are white, black and yellow. The minimum trace or space is 4 mil and the lead time is 7-15 days.

We specialize in custom Communication PCB Assembly and have the capability to produce high-quality 4 Layer PCBs. Contact us for more information about our Multilayer PCB Assembly services.

Packing and Shipping:

Packaging and shipping of Multilayer PCB Assembly:

• The PCBs are carefully inspected and then placed in an anti-static bag.
• The components are then placed in a bubble wrap or bubble bag.
• The PCBs and components are then placed in an ESD-safe box and sealed.
• The box is then placed in a cardboard or corrugated box with appropriate padding.
• The box is then closed and sealed with an adhesive tape.
• The box is then shipped using a reliable shipping provider.
