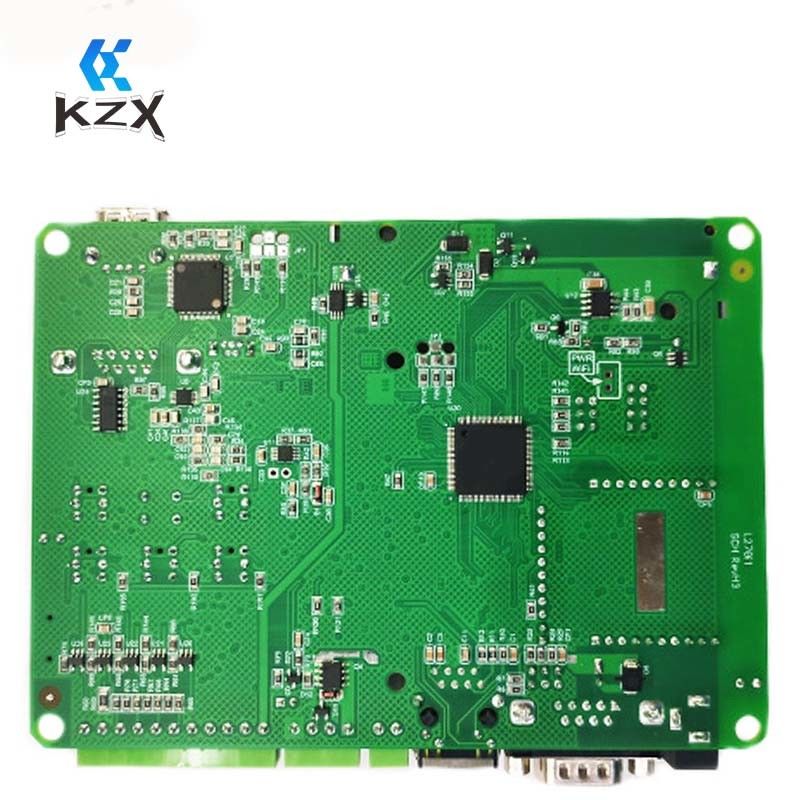

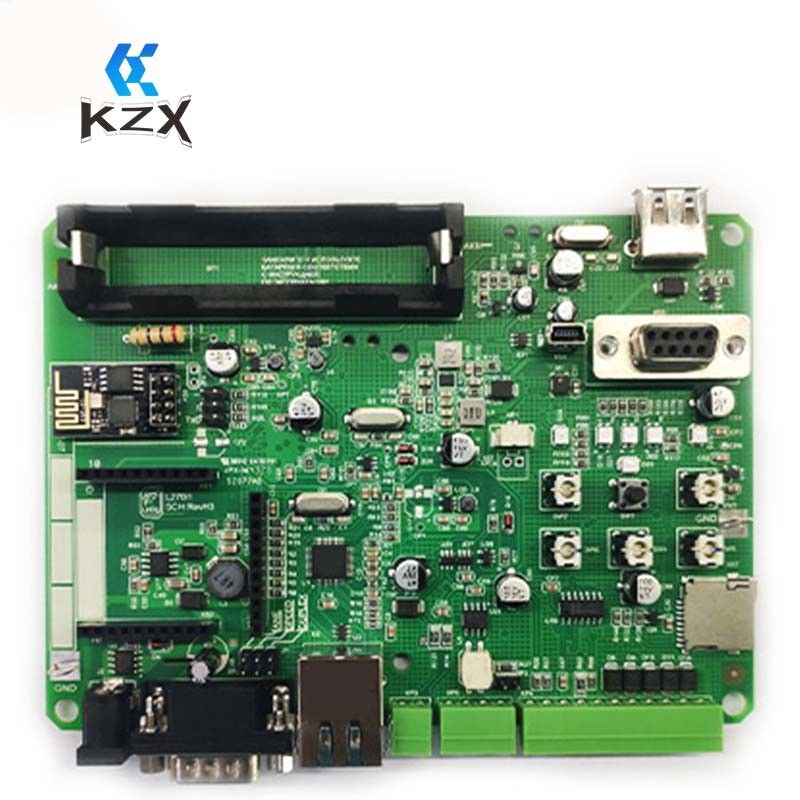

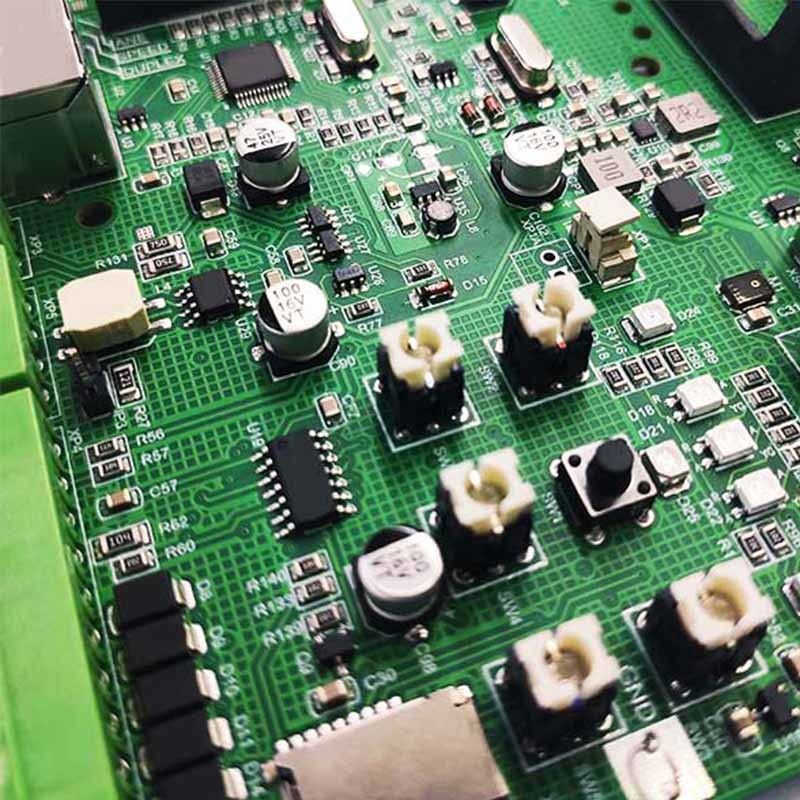

1-20 Layer FR4 Multilayer PCB Assembly With Min Hole Size 0.25mm 10 Mil

Product Description:

Multilayer PCB Assembly is a complete manufacturing service for the production of high-quality and reliable Printed Circuit Boards (PCBs). Our product range covers 8 Layer PCB, 10 Layer PCB, and 4 Layer PCB, and are capable of meeting the most demanding requirements in terms of layer count, min hole size, min trace/space, and lead time. Our manufacturing services are suitable for PCBs with min hole size of 0.01'', 0.25mm or 10 Mil, min trace/space of 4 Mil, and lead time of 7-15 days. We specialize in providing our customers with excellent quality products that are cost effective and delivered on time. Our experienced engineers and technicians use the latest technology and industry-standard processes to ensure that our Multilayer PCB Assembly is manufactured to the highest quality standards. With an experienced team of professionals, we are committed to delivering superior quality products that meet the most stringent industry standards and exceed customer expectations.

Features:

• Product Name: Multilayer PCB Assembly
• Board Size: Max 500mm*500mm
• Lead Time: 7-15 Days
• Layer Count: 1-20
• Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ
• Silkscreen Color: White,Black,Yellow
• Keywords: Circuit Board Assembly, 8 Layer PCB, FR4 Multilayer PCB

Technical Parameters:

Applications:

KZX provides customers with high quality multilayer PCB assembly services. KZX model number KZX2023120514 is an 8 Layer PCB with minimum trace/space of 4 Mil, min hole size of 0.01'', 0.25mm or 10 Mil and board thickness of 0.4-3.0mm. The silkscreen color is available in white, black and yellow. We have more than 3 PCB SMT lines and guarantee a lead time of 7-15 days. The minimum order quantity is 10 pieces and the price can be negotiated. We have received certification 25020001470ROS and accept various payment terms including T/T, L/C, Paypal, Western Union, and more. We also provide customer specified packing and delivery time is subject to order status. For high quality and efficient circuit board assembly, contact KZX today!

Customization:

• Brand Name: KZX
• Model Number: KZX2023120514
• Place of Origin: Guangdong, China
• Certification: 25020001470ROS
• Minimum Order Quantity: 10 pieces
• Price: Price Negotiation
• Packaging Details: Customer Specified Packing
• Delivery Time: Subject to Order Status
• Payment Terms: T/T, L/C, Paypal, Western Union, etc.
• Supply Ability: 3 PCB SMT Lines
• Board Size: Max 500mm*500mm
• Min Hole Size: 0.01'', 0.25mm (or 10 Mil)
• Board Thickness: 0.4-3.0mm
• Material: FR4, High TG FR4, Halogen Free, Aluminum, Rogers, Teflon

Packing and Shipping:

At the completion of the manufacturing process, each multilayer PCB assembly is carefully packaged and shipped to the customer. All PCB assemblies must be packaged in an anti-static material, with the product securely placed to prevent any damage during shipping.

The package is then clearly labeled with the customer's name, shipping address, and any other relevant information. Once the package has been sealed, it is then placed in a protective outer box, with sufficient padding to ensure safe transit.

The delivery time depends on the location of the customer. In most cases, the package arrives within 1-3 business days. The customer is always notified of their tracking number upon dispatch and can use this to track the progress of their shipment.
