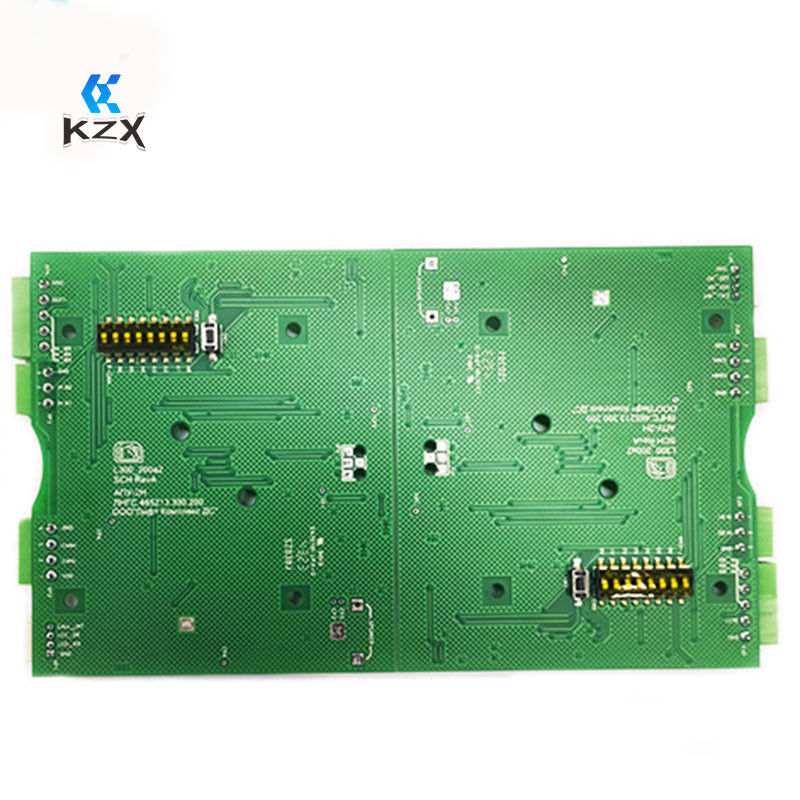

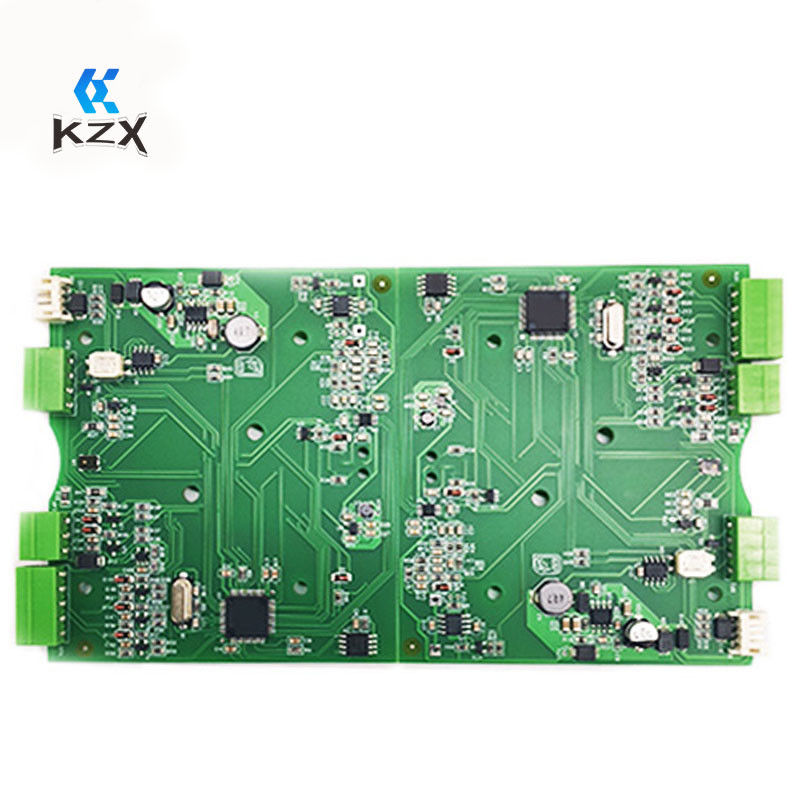

FR4 Halogen Free 1-20 Layer OEM Multilayer PCB Assembly

Layer Count 1-20 OEM PCB Assembly With Min Hole Size 0.25mm.Or 10 Mil

Multilayer PCB Assembly is a type of communication PCB assembly and OEM PCB assembly that is used to produce a variety of electrical components. It is available in various materials including FR4, high TG FR4, halogen free, aluminum, Rogers, and Teflon. The board size for Multilayer PCB Assembly can reach up to 500mm*500mm in size and have a layer count of 1-20. It offers a minimum trace/space of 4 mil and a lead time of 7-15 days. In addition, it also provides flex PCB assembly for more complex applications. Multilayer PCB Assembly is an ideal choice for those who need a reliable and efficient product.

Features:

• Product Name: Multilayer PCB Assembly
• Lead Time: 7-15 Days
• Min Trace/Space: 4 Mil
• Layer Count: 1-20, including 8 Layer PCB, 4 Layer PCB, 6 Layer PCB
• Material: FR4, High TG FR4, Halogen Free, Aluminum, Rogers, Teflon

Technical Parameters:

Applications:

Multilayer PCB Assembly from KZX is an ideal choice for a variety of applications. With KZX’s brand name KZX2023120514 and certification 25020001470ROS, the quality of this product is guaranteed. The minimum order quantity is 10 pieces and the price is negotiable. The packaging is customer specified, and the delivery time is subject to the order status. Payment methods include T/T, L/C, Paypal, Western Union, etc. KZX has 3 PCB SMT lines and can deliver the product within 7-15 days. This multilayer PCB has a copper thickness of 1/2OZ, 1OZ, 2OZ, and 3OZ, and silkscreen colors like white, black, and yellow. The layer count can be customized from 1-20. It is suitable for FR4 multilayer PCB, 4 layer PCB, and 6 layer PCB applications.

Customization:

Brand Name: KZX
Model Number: KZX2023120514
Place of Origin: Guangdong, China
Certification: 25020001470ROS
Minimum Order Quantity: 10 piece
Price: Price negotiation
Packaging Details: Customer specified packing
Delivery Time: Subject to order status
Payment Terms: T/T, L/C,Paypal,western union etc
Supply Ability: 3 PCB SMT lines
Silkscreen Color: White,Black,Yellow
Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ
Material: FR4, High TG FR4, Halogen Free, Aluminum, Rogers, Teflon
Board Size: Max 500mm*500mm
Min Hole Size: 0.01'',0.25mm.or 10 Mil

KZX provides 10 Layer PCB Assembly services for OEM projects. We manufacture high-quality 10 Layer PCBs using advanced technology and materials. Our 10 Layer PCB Assembly services offer a wide range of features, such as copper thickness, material options, board size, and minimum hole size. We carefully inspect each board for quality assurance. We also have a team of experienced engineers to help you with the design and fabrication of your project.

KZX offers superior quality, reliable services, and competitive prices. We are committed to providing you with excellent customer service and satisfaction. Contact us today to discuss your 10 Layer PCB Assembly needs.
