1-20 Layer Multi Layer Printed Circuit Board 0.5oz 1oz 2oz 3oz

Product Description:

Multilayer PCB assembly is a highly advanced technology which is used to make sophisticated electronic devices. It is designed to connect multiple layers of printed circuit boards and other components together to form a single device. This technology is used in communication, industrial and other high-level applications.
Multilayer PCB assembly provides higher level of performance, density and reliability. It is commonly used in applications which require high levels of precision or speed. The layer count of the assembly can range from 1 to 20 and the copper thickness can vary from 1/2OZ to 3OZ. It also allows for a minimum hole size of 0.01'', 0.25mm or 10 mil.
The assembly process is complex and requires a certain level of expertise and attention to detail. It also requires that the layers of the board are aligned with precision and that the components are correctly placed and soldered. The silkscreen colors used on the board can be white, black or yellow.
Multilayer PCB assembly is used in many different industries, such as the automotive, aerospace, medical and communication sectors. It is also used in industrial applications, such as 8 layer PCB and communication PCB assembly, which require a higher level of precision and reliability.

Technical Parameters:

Applications:

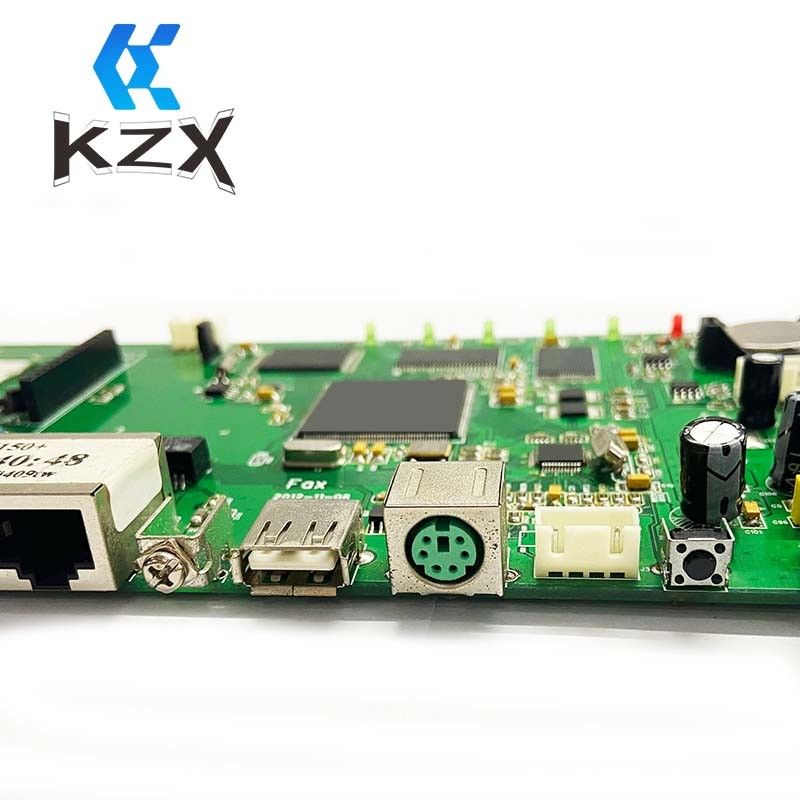

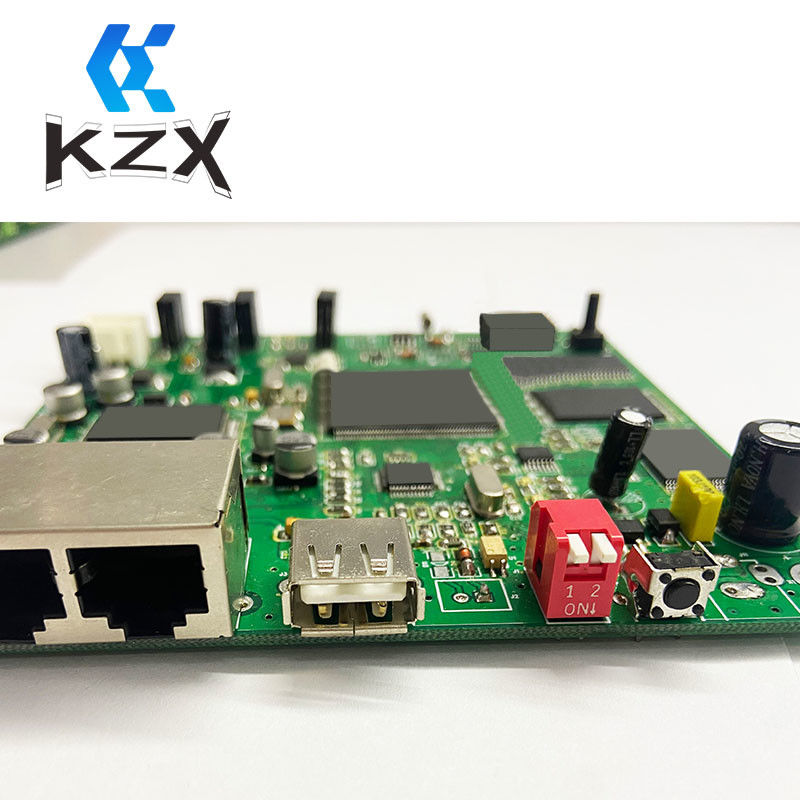

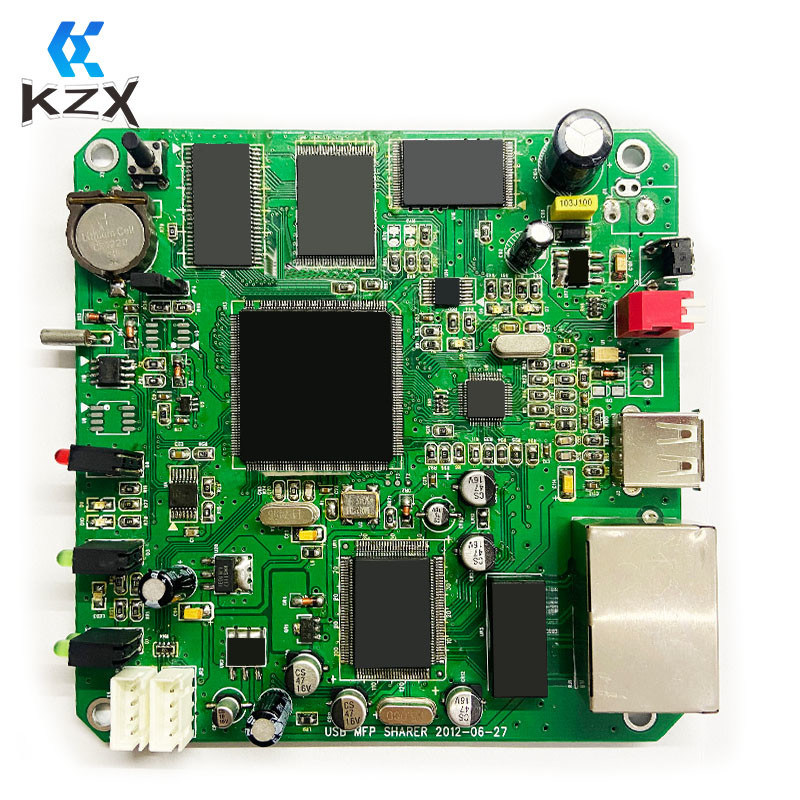

KZX Multilayer PCB Assembly (Model Number: KZX2023120506) is a high-quality 8 layer PCB with a board thickness ranging from 0.4-3.0mm, and minimum trace/space of 4 mil. It is produced by KZX, a renowned brand in China, and is certified by 25020001470ROS. The minimum order quantity is 10 pieces and the price is negotiable. It is delivered in customer specified packing and the lead time is 7-15 days. Payment terms include T/T, L/C, Paypal, western union etc. There are 3 PCB SMT lines with a capacity to produce up to 20 layer PCBs. This 8 layer PCB assembly is ideal for applications requiring circuit board assembly such as consumer electronics, home appliances, communication equipment, medical equipment, automotive equipment, industrial control, etc. It is reliable, cost-effective and highly efficient.

Customization:

Support and Services:

At XYZ, we provide comprehensive and reliable technical support and services for our Multilayer PCB Assembly products. Our team of experienced professionals are always available to help you with any questions or concerns you may have.

Our technical support services include:

• Consulting services to help you choose the right product for your needs
• Design and engineering assistance for your application
• On-site installation and setup of your product
• Ongoing maintenance and troubleshooting
• Software updates and upgrades
• Training and education for your personnel

We also offer a variety of additional services that can help you get the most out of your Multilayer PCB Assembly product, including custom product design, product testing and certification, and product warranty and repair services.

If you have any questions about our Multilayer PCB Assembly products or services, please don't hesitate to contact us.
