Connectors SMT PCB Assembly With Yellow Solder Mask And Black Silk Screen On Sale
SMT PCB Assembly is a type of printed circuit board (PCB) mounting assembly that uses surface-mount technology (SMT) components. It involves placing the components on the opposite side of the board from the soldering side and then soldering them onto the board. This type of assembly is used in many different types of electronic devices, from consumer products to industrial equipment.
SMT PCB Assembly typically uses materials such as FR-4, FR-1, CEM-1, CEM-3, aluminum, or Rogers. Passive components, connectors, integrated circuits (ICs), ball grid arrays (BGAs), and quad flat no-leads (QFNs) are all commonly used components. To ensure the highest quality of the assembly, a variety of tests can be performed, such as automated optical inspection (AOI), X-ray inspection, flying probe testing, in-circuit testing (ICT), and functional circuit testing (FCT). The assembly can be further customized with silk screen colors like white, black, and yellow, and surface finishes such as HASL, electroless nickel immersion gold (ENIG), organic solderability preservatives (OSP), immersion silver, and immersion tin.
SMT PCB Assembly is an important process in the manufacture of printed circuit boards and provides a cost-effective solution for a wide range of applications. It is also reliable, fast, and accurate, making it an ideal solution for Printed Circuit Board Mounting Assembly, Surface Mount PCB Assembly, Surface Mounted Printed Circuit Board Assembly, and other related services.
| Parameter | Value |
|---|---|
| Product Type | SMT PCB Assembly |
| Materials | FR-4, FR-1, CEM-1, CEM-3, Aluminum, Rogers |
| Board Thickness | 0.2-6.0mm |
| Surface Finish | HASL, ENIG, OSP, Immersion Silver, Immersion Tin |
| Components | Passive Components, Connectors, ICs, BGA, QFN |
| Silk Screen Color | White, Black, Yellow |
| Solder Mask Color | Green, Blue, White, Black, Yellow, Red |
| Test | AOI, X-Ray, Flying Probe, ICT, FCT |
KZX SMT PCB Assembly (Model Number: KZX2023120502) is a kind of Surface Mounted Printed Circuit Board Assembly that is widely used in many applications and industries. It has been certified by 25020001470ROS and its minimum order quantity is 10 pieces. KZX provides customers with various payment terms like T/T, L/C, Paypal, Western Union etc. and packaging details can also be specified by customers. Moreover, KZX SMT PCB Assembly is available in various colors like Green, Blue, White, Black, Yellow, Red. In addition, it can be tested with AOI, X-Ray, Flying Probe, ICT and FCT. Furthermore, KZX SMT PCB Assembly supports Passive Components, Connectors, ICs, BGA, QFN with various surface finishes including HASL, ENIG, OSP, Immersion Silver, Immersion Tin. KZX has 3 PCB SMT lines to ensure fast delivery time and high supply ability.
Brand Name: KZX
Model Number: KZX2023120502
Place of Origin: Guangdong, China
Certification: 25020001470ROS
Minimum Order Quantity: 10 piece
Price: Price negotiation
Packaging Details: Customer specified packing
Delivery Time: Subject to order status
Payment Terms: T/T, L/C,Paypal,western union etc
Supply Ability: 3 PCB SMT lines
Surface Finish: HASL, ENIG, OSP, Immersion Silver, Immersion Tin
Board Thickness: 0.2-6.0mm
Components: Passive Components, Connectors, ICs, BGA, QFN
Solder Mask Color: Green, Blue, White, Black, Yellow, Red
Product Type: SMT PCB Assembly
SMT PCB Assembly provides a comprehensive suite of technical support and service to our customers. Our highly-trained team of support engineers is available to help you with any issue you may have.
We provide support for all aspects of your SMT PCB Assembly, including:
We also offer a range of training services, including onsite training and online seminars. Our training services are designed to help you maximize the performance of your SMT PCB Assembly.
If you have any questions or need assistance, please don't hesitate to contact us. Our team is here to help you get the most out of your SMT PCB Assembly.
SMT PCB Assembly Packaging and Shipping:

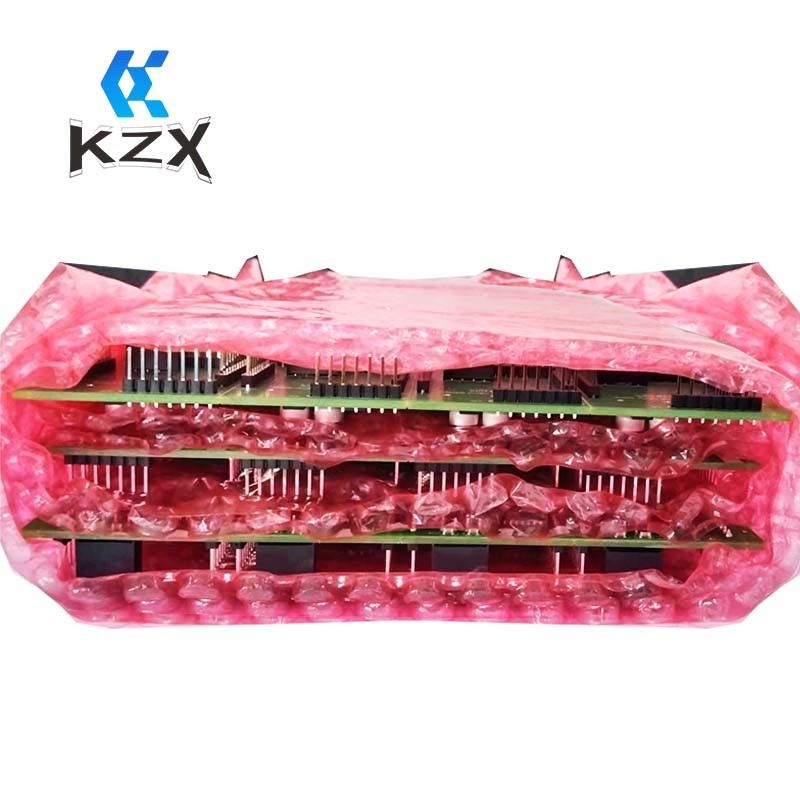

The SMT PCB Assembly will be securely packaged in a padded cardboard box with additional cushioning material to ensure safe transportation. We will ship the package using a reliable and trackable courier service to ensure prompt and safe delivery to the customer.
Our products are sold all over the world, you can rest assured.
